Rainwater Collection Systems: Residential solutions for efficient water management

Excess rainwater on property doesn't have to be a problem — it can be an opportunity. By implementing efficient rainwater drainage and storage solutions, homeowners and facility managers can reduce the risk of water damage while reducing reliance on municipal water and sewage networks.
From simple local infiltration systems to advanced rainwater harvesting and reuse solutions, this article explores how to make stormwater management in residential areas easier and more effective.

_{From runoff to resource: Rethinking rainwater collection}

Water pooling on a property can result from various factors, including soil composition, insufficient drainage capacity, proximity to natural water bodies, and local land management practices. Clay-heavy or compacted soils, for example, can limit proper water absorption, while low-lying areas may naturally collect excess rainwater runoff. Without a properly designed drainage system, standing water can lead to soil erosion, foundation damage and landscaping issues.

At the same time, rainwater can be a valuable resource, and today, many homeowners and property developers are looking beyond conventional drainage solutions. Modern stormwater retention and infiltration systems not only mitigate flooding risks but can also help replenish groundwater levels or harvest rainwater for irrigation and other non-potable uses.

Residential rainwater solutions should be engineered considering the specific conditions of each property. Every step of the process — from collecting runoff from roofs, driveways and paved surfaces to ensuring controlled infiltration into the ground or directing water for reuse — must be carefully planned. Selecting the right harvesting system design and capacity is essential to ensure its long-term efficiency, sustainability, as well as reliable property protection.

_{Above-ground vs. underground rainwater collection systems}

A wide range of above-ground rainwater harvesting solutions — from simple rain barrels to large cisterns — are available to property owners. The main benefits of above-ground systems are low upfront costs, fast installation (that does not require excavation), and relatively simple maintenance and inspection.

However, above-ground tanks are exposed to temperature fluctuations and are more prone to algal growth. They have a smaller storage capacity, and they take up valuable surface land area while creating visual obstruction.

For these reasons, underground rainwater storage tanks have been gaining momentum among real estate developers and homeowners. Such systems direct water from gutters and downspouts directly into high-capacity, subsurface reservoirs, optimizing collection efficiency and minimizing water waste. While underground setups may have higher upfront costs due to excavation, they offer greater storage capacity, longer and more reliable service life, and preserve valuable surface space.

_{Key benefits of underground rainwater harvesting systems}

_{Property protection from flood damage}

By connecting paved-surface and roof drainage systems to high-capacity underground reservoirs, property owners can manage very large volumes of stormwater runoff, reducing the risk of flooding. Unlike public drainage infrastructure, local rainwater collection setups operate independently, making them ideal for areas where centralized networks are unavailable or overloaded.

_{Reduced operational costs}

Harvesting rainwater helps reduce monthly water and sewer bills. Storage tanks can be fitted with a supply line to direct collected water for lawn irrigation, vehicle cleaning or bathroom facilities. In remote areas, installing a local collection system often turns out more cost-effective than connecting to a public sewage network. In upcoming residential areas, multiple properties can be connected to shared underground storage tanks, reducing costs even further.

_{Improved space utilization}

Unlike above-ground tanks, underground designs free up space for gardens, recreational areas or driveways. This is especially beneficial for smaller properties, where every square meter counts. Furthermore, storing the water underground does not compromise the view, preserving the property's aesthetics.

_{Supporting a sustainable water cycle}

Underground rainwater collection systems allow for natural water infiltration, contributing to local groundwater replenishment. If used for rainwater harvesting and storage, such systems can also help alleviate water stress during periods of drought and supplement well water, providing a backup for non-drinking water needs.

_{Design considerations for rainwater collection systems}

Residential rainwater harvesting setups must not only collect and store rainwater but also address its treatment for reuse or infiltration. The way water is directed, filtered, and stored plays a crucial role in the system's overall efficiency and sustainability.

Each rainwater harvesting project must be designed, considering:

• collection surface areas
• the available underground space
• local soil conditions
• above-ground land use and traffic load
• rainfall intensity
• whether the system is intended for water infiltration or reuse

Using high-quality materials is essential, as above-ground system components, such as gutters and downspouts, must withstand harsh weather conditions, whereas underground piping and the storage tank itself must be resistant to vertical and lateral soil pressure.

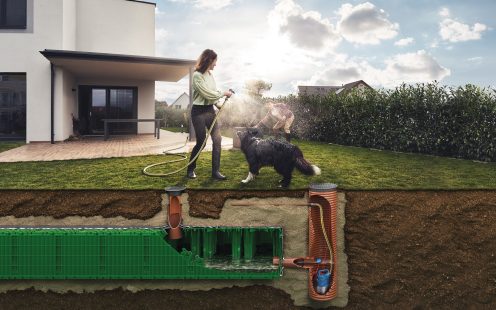

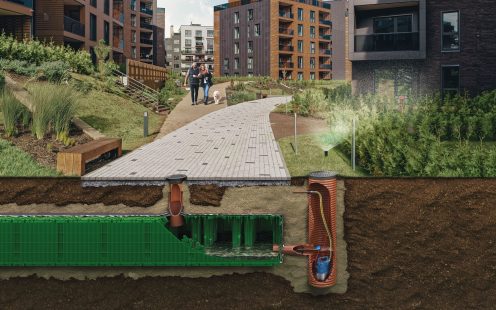

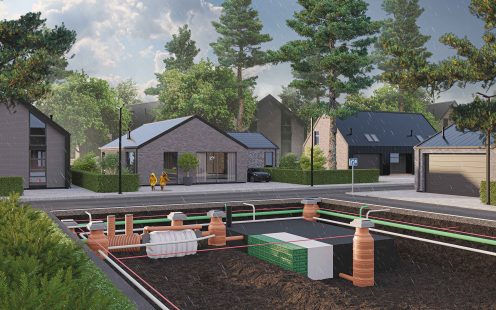

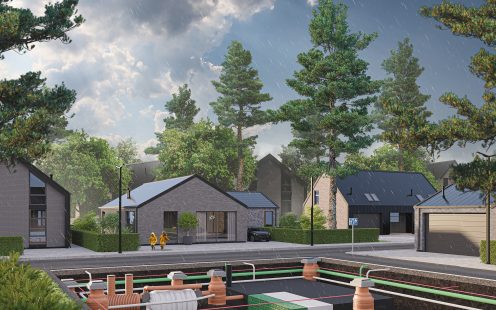

_{How underground rainwater harvesting works}

Modern underground rainwater harvesting systems serve for decades, handling stormwater runoff from collection to final use with minimal maintenance:

• First, rainwater collected from building roofs and/or paved surfaces is directed through gutters, downpipes, and yard drains into sewer pipes leading to a sedimentation chamber — which helps protect the rainwater storage tank from contaminants such as sand and leaves.

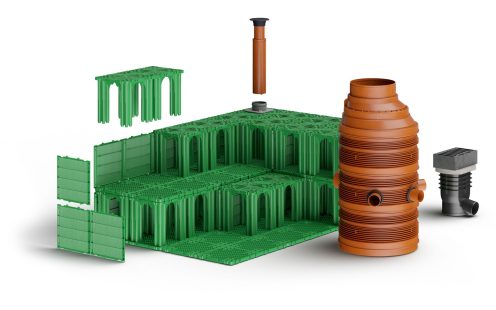

• From the sedimentation chamber, the filtered water flows into an underground storage tank. Such reservoirs are often modular and constructed from separate infiltration or retention crates, which allows for greater design flexibility.
• If the system is intended for local rainwater infiltration, the underground tank is wrapped in geotextile, allowing water to gradually seep into the ground and replenish aquifers.
• If the property owner prefers to harvest and reuse rainwater, the storage tank is wrapped in a geomembrane, creating a sealed container for long-term water storage.
• By adding pumps and supply lines, the water tank can be connected to the property's in-house non-potable water distribution system or garden and landscape irrigation system.

_{Importance of rainwater pre-treatment and filtration}

Ensuring appropriate water quality is important for any rainwater harvesting system, whether the collected water is destined for irrigation, toilet flushing, or other non-potable uses.

• Simpler rainwater harvesting systems incorporate a so-called first flush diverter. First flush diverter is a simple roof downpipe component that redirects the initial runoff, often containing large debris, dust, and organic matter. Once the first flush is diverted, cleaner water is allowed to flow into the storage tank.
• Advanced rainwater harvesting setups incorporate higher-efficiency leaf catchers, downspout filters, and sedimentation tanks to prevent mechanical pollutants from reaching the storage tank. Unlike first flush diverters, such methods don't waste the first water, which can reach up to 2 liters per square meter of roof.
• Whichever pre-tank filtration method is used, the goal is to keep larger particles away from the main reservoir, improving the water quality and reducing the risk of sediment buildup to protect the pump system and other sensitive components.
• Additional filtration systems are installed depending on the catchment area, water quality and intended use. For example, oil separators are required when rainwater is collected from driveways and parking lots, whereas mechanical and carbon filters are used to ensure the water is safe for purposes such as laundry washing or toilet flushing.

_{Home rainwater harvesting: Emerging solution for a changing climate}

Europe's climate is shifting, with prolonged periods of rain often followed by intense heatwaves and droughts. Today's stormwater management solutions must address and mitigate the many risks posed by extreme weather events.

By combining conventional roof and surface drainage systems with high-capacity rainwater storage reservoirs, property owners and managers can:

• prevent flooding and overflows
• replenish aquifers and maintain hydraulic invariance
• secure a free water supply for non-potable applications

Such integrated, end-to-end solutions enable climate-proofing residential areas against extreme weather — while contributing to a future where rainwater is no longer a challenge but an asset.
